SolidRocks 0.85b Main Interface

For ultimate ease of use, SoliRocks comes with useful buttons and settings.

Render Size rollout

All important resolution parameters are under your mouse pointer.
SR gives quick access to standard Formats, Safe Frame (SF) on/off, Print Wizard assistant...

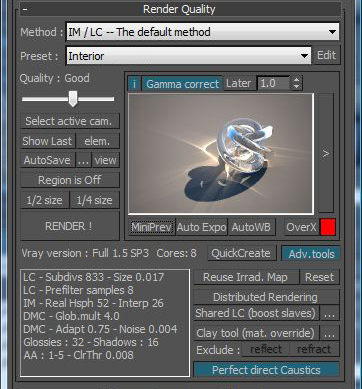

Render Quality rollout

  • Try different GI methods easily with the new Method selector
  • Just choose the desired quality and press the Render button
  • Render 1/2 and 1/4 size buttons for faster previews
  • Mini preview integrated in SolidRocks
  • Choose required preset, or make your own!
  • Show overexposed pixels (OverX) to assist exposure settings
  • Quick access to last rendered image (Show Last)
  • Quick access to Render elements panel (elem.)
  • Override Max region options with Region button
  • Autosave function: store your renders in folder (increment)
  • Gamma correct for Linear Work Flow (or custom)
  • Auto Exposure tool to adjust camera shutter speed
  • Auto White Balance tool to adjust camera's custom colour balance

Colour mapping rollout

Thanks to this rollout you gain fast access to essential colour mapping options.
Use the slider to setup your preferred exponential/linear ratio.
Of course these settings (and all others) are saved and restored with each scene.



Advanced tools: GUI switcher for power users

Simply click on the (Adv. tools) button, and solidrocks extends its interface to show you more tools; like Shared light cache tool, Distributed Rendering, Clay tool, and the new "Perfect direct Caustics" tool.



In this example you can see a preview showing the "Perfect direct Caustics" in action.



The extended GUI shows in real time the essential V-Ray settings changing when the user changes the resolution and / or adjusts the desired quality.

This view provides a global overview of Vray settings, and helps new V-Ray users to learn the most important settings in V-Ray to deal with quality and render times.
